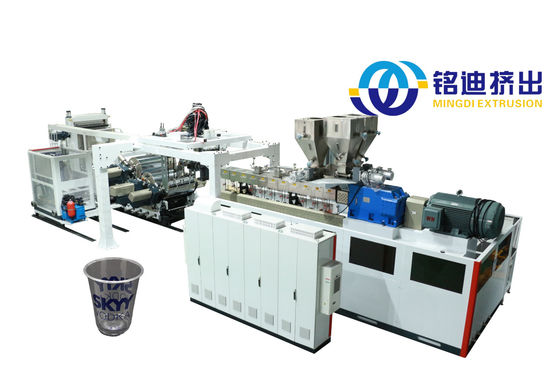

PET Cup Body Sheet Extrusion Line Plastic Extruder 800-1300kg/h

PET Cup Body Sheet Extrusion Line Plastic Extruder 800-1300kg/h

MOQ: 1 Set
Price: US $160,000-200,000/Set (Reference FOB Price)
Standard Packaging: PE Film & Wooden Case
Delivery Period: 90 days
Payment Method: T/T
Supply Capacity: 180-200 Sets of Sheet Line Every Year
Detail Information
Place of Origin
Zhejiang, CHINA
Brand Name
MINGDI EXTRUSION
Certification
ISO and CE
Model Number
75/40,85/44,95/48,52/40
Type:
Sheet Extruder
Feeding Mode:
Multiple Feed
Screw:
Twin-Screw
Screw Channel Structure:
Deep Screw
Width:
820mm
Thickness:
0.8-1.7mm
Capacity:
800-1300kg/h
Quantity Of Cup:
A Million-two Million/day
Color:
Blue Or Any You Want
Control:
SIEMENS
Warranty:
12 Months
Minimum Order Quantity:
1 Set
Price:
US $160,000-200,000/Set (Reference FOB Price)
Packaging Details:
PE Film & Wooden Case
Delivery Time:
90 days
Payment Terms:
T/T
Supply Ability:
180-200 Sets of Sheet Line Every Year
Highlight:

cup body pet sheet extrusion line

,

800-1300kg/h pet sheet extrusion line

,

cup body pet sheet extruder machine

Product Description

MINGDI EXTEUSION PET CUP BODY SHEET EXTRUSION LINE PLASTIC EXTRUDER 800-1300KG/H



PET sheet has high transparency, excellent physical and mechanical properties, high impact strength, good thermal stability, excellent chemical resistance and other characteristics. In addition, it also has good weather resistance and insulation, and can maintain good performance over a wide temperature range.



Advantage

  • MINGDI EXTRUSION latest twin screw extrusion technology, makes the sheet with good toughness. And with bigger production capacity, lower power consumption.
  • Stable running, can be connected with the international first-class forming machine directly. Inline equipment will save the cost at least 10%.
  • It's one of the advanced production lines in China. High capacity, high precision, lower power consumption. The unique function of "key to acceleration" can realize low speed adjustment, high speed production without fluctuation, with high stability.

Equipment List



1.complete material loading system 1 set 2.twin screw extruder 1 set
3.screen changer 1 set 4.melt pump 1 set
5.T-die 1 unit 6.three roller canlender 1 set
7.tempetrature controller 1 unit 8.edge trimming and winding 1 set
9.silicone coating unit 1 unit 10.oven dryer 1 set
11.film lamination unit 1 unit 12.haul-off device 1 set
13.winder 1 unit 14.complete electric control system 1 set
15.spare parts 1 set 16.if necessary, we will provide the auxiliary equipment



Extruder: High precision and high efficiency extruder is used to heat and melt the pre-treated PET raw materials and extrude them. Extruders usually adopt twin-screw design to improve extrusion efficiency and product quality.

Mold system: Mold is one of the core components of the production line, and its shape and size determine the shape and size of the final product. Molds are usually manufactured using precision machining technology to ensure the accuracy and consistency of the product.

Cooling system: The extruded PET is quickly cooled by a cooling device to fix its shape and prevent deformation.

Traction cutting device: the cooled PET is pulled to the cutting device for fixed length cutting, and the finished product meets the requirements.

Control system: The advanced Siemens control system is used to monitor and adjust the entire production process in real time to ensure the stable operation of the production line and product quality.

PET Cup Body Sheet Extrusion Line Plastic Extruder 800-1300kg/h 0
