Inline Thermoforming PP PS Pet Plastic Sheet Extrusion Line Made In China

Inline Thermoforming PP PS Pet Plastic Sheet Extrusion Line Made In China

MOQ: One set
Price: $160000-$170000
Standard Packaging: wooden box
Delivery Period: 90days
Payment Method: T/T
Supply Capacity: 180-200 sets/year
Detail Information
Place of Origin
Zhejiang, China
Brand Name
MINGDI
Certification
CE, ISO
Model Number
MD85/44
Automatic Grade:
Automatic
Weight:
8-20T
Screw Design:
Double-screw
Warranty:
12 Months
Color:
Customised
Minimum Order Quantity:
One set
Price:
$160000-$170000
Packaging Details:
wooden box
Delivery Time:
90days
Payment Terms:
T/T
Supply Ability:
180-200 sets/year
Highlight:

Inline pet sheet extruder

,

Inline pet sheet production line

,

Thermoforming pp sheet extrusion line

Product Description
Thermoforming Plastic PP PS Pet Plastic Sheet Extrusion Line

Applicant:

Sheet Extruder is a combination of extruder, head,calender,hauloff,rewinder and electric control box
The drum,screw,screen changer and die head are made of high quality alloyed steel with high hardness,strong corrosion resistance and long operating life after nitrogen treatment.The head is adopted JINGCHENG T-type branch pipe decreasing
type construction,so the flow passage is convenient for solution to flow without stagnation and the thickness of products will be smooth and even. The felt wrapped circulation and cooling inside roll and bring a prefect effect.
The temperature of die head, screen changer and the drum separately controlled.

Configuration & Features:

Screwdrum and screen changer are made of high quality alloyed steel (38CrMOAlA) with nitriding treatment
Full-Auto continues belt-type screen changer without machine stop
Calendar designed with double water circulation and cooling system
360° Double station rewinder

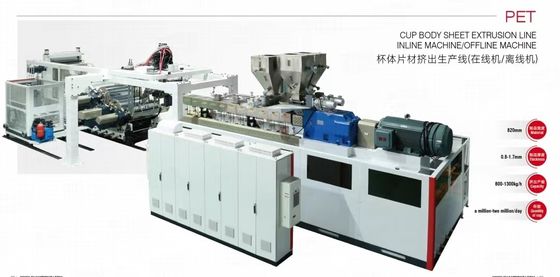

Inline Thermoforming PP PS Pet Plastic Sheet Extrusion Line Made In China 0


Technical Parameter:



Plastic Sheet Extruder Main Technical Parameter
Max. output 650-800kgs/hr
Thickness range of sheet 0.3-1.8mm
Sheet Width 700mm
Screw Diameter € 82mm
Lip Thickness 0.2-1.8mm
Roller Diameter

Lower roller diameter 400mm, middle roller and upper roller diameter 600mm

Adjust Distance of roller

Adopting hydraulic cylinder to adjust the distance, worm gear elevator micro-adjustment limit, with mechanical insurance, with micro-adjustment and percentage meter device, with hydraulic station, the highest pressure 15Mpa, with self-locking pressure preservation function.

Screw Ratio 44:1
Width of die mouth 1050mm
Barrel heating treatment

The first three areas cast copper heating plate, the remaining areas cast aluminum heating plate heating, with stainless steel insulation cover.

Number of roller 3
Extruder motor

200KW AC motor

Barrel heating power

About 50KW * 10zones

Die head heating power About 30 kw * 8 zones
Screen changer heating power 10 kw
Calender motor

5 KW*3 units, Siemens servo motor

Rewinder motor

Siemens servo motor, 2KW

Air pressure 0.5-0.7Mpa
Water consumption ≥40m³ /h
Air consumption 1m³ /h,





Packing shipping:



Inline Thermoforming PP PS Pet Plastic Sheet Extrusion Line Made In China 1



Our company:



MINGDI EXTEUSION, is located in Changxing. Since its establishment, the company has always adhered to the development concept of “scientific and technological innovation, leading the future”, focusing on the research and development, production and sales of extrusion equipment, and is committed to becoming a leading enterprise in the industry.



ZHEJIANG MINGDI EXTEUSION MACHINERY CO., LTD covers a vast area and has modernized production plants and advanced processing equipment to ensure that every product meets high standards and quality requirements.



FAQ:


1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.

2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)

3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.

4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.

5. What about the payment term?
Mostly 30%T/T in advanced, the rest need be paid by TT before shipping

6. Machine adjustment and installation
We can send technicians go to customers' country for machine adjustment
And installation
