PC PMMA PS Transparent Board Production Line Extrusion Machine 1220mm

MOQ:	one set
Price:	50000-300000$
Standard Packaging:	PE film & wooden pallet packaging
Delivery Period:	70 days
Payment Method:	T/T
Supply Capacity:	260 sets one year

Details Information

Product Description

Detail Information

Place of Origin

ZheJiang, China

Brand Name

MINGDI EXTRUSION

Certification

CE,ISO

Model Number

MGL130/38,45/30, MGL120/35,45/30

Material:

APET/PETG/CPET/PLA

Width:

1200-2100; 1220mm

Thickness:

1.5-12mm; 1-12mm

Capacity:

750kg/h; 500kg/h

Applicable Industries:

Construction Industry ; Adversting Industry Etc.

Core Selling Point:

Can Be Bended Directly, Good Performance Of Hot Forming, Sound Insulation Resistance

Warranty Period:

One Year

Core Component Warranty Periody:

One Year

Core Components:

Extrusion Machine, Screen Changer, Pressure Sensor, Metering Pump, Extrusion Die, Three-roll Calender, Drawing Machine, Automatic Cutting System, Electrical Control System

Production Capacity:

1000kg/h

Linear Velocity:

60m/min

Highlight:

PC PMMA Transparent Board Production Line

1220mm Transparent Board Production Line

Product Description

MINGDI EXTRUSION PC/PMMA/PS/Transparent Board Production Line extrusion sheet production line

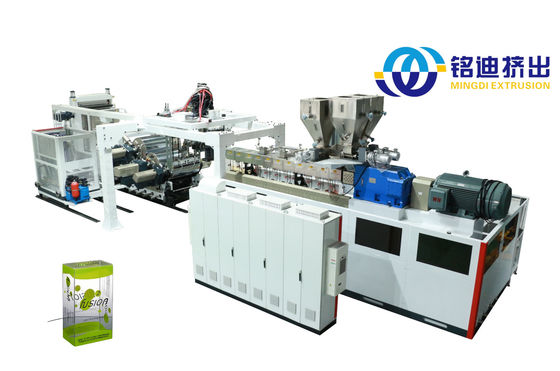

PC PMMA PS Transparent Board Production Line Extrusion Machine 1220mm 0

Item	Description
Product Name	Transparent Board Production Line
Product Model	MGL130/38,45/30, MGL120/35,45/30
Suitable Materials	APET/PETG/CPET/PLA
Application Fields	Construction industryl; advertising industry etc.
Production Capacity	Depending on the production line configuration, the output can reach 1000kg/h
Layers	3-7 layers adjustable
Product Width	Maximum width up to 1200mm
Product Thickness	Adjustable from 1-12mm
Production Line Speed	Up to 60m/min
Main Machine Model	Equipped with efficient, energy-saving, and stable extruders, with imported inverters and control systems
Screw Configuration	Configure screws with different diameters and L/D ratios based on the number of layers and material requirements
Temperature Control System	Utilizing advanced PID temperature control systems to ensure stable material temperatures in each layer and improve product quality
Die Head Design	Using multi-channel parallel distribution technology to ensure uniform layer thickness and reduce internal stress in the film
Auxiliary Equipment	Equipped with an automatic screen changer, online thickness gauge, traction machine, winding machine, etc.
Control System	PLC programming control with a touch screen interface for automated and intelligent production process management
Safety Protection	The equipment is equipped with an emergency stop button, safety light curtains, protective covers, and other safety features to ensure production safety
Floor Space	Depending on the production line configuration, the floor space required is about 200-400 square meters
Power Requirements	Three-phase five-wire, 380V, 50Hz
