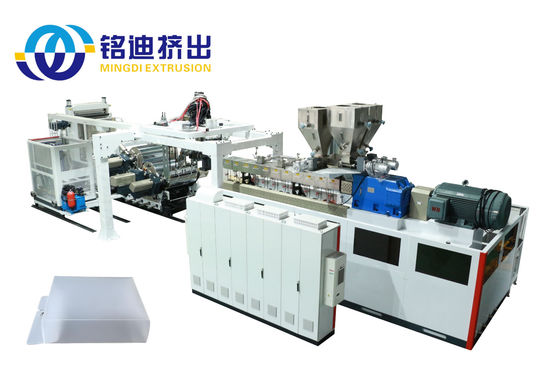

MingDi Multi Layer Coextrusion Sheet Production Line Plastic Sheet Extrusion Line

MOQ: one set
Price: 20000-150000$
Standard Packaging: PE film & wooden pallet packaging
Delivery Period: 90days
Payment Method: T/T
Supply Capacity: 200 sets one year
Detail Information
Product Description
Detail Information
Place of Origin
ZheJiang,China
Brand Name
MINGDI EXTRUSION
Certification
CE,ISO
Model Number
52/75/85/95
Width:
700-1500mm
Capacity:
500-1400kg/h
Material:
PET /PLA/PP/PS
Core Component:
Extrusion Machine, Screen Changer, Pressure Sensor, Metering Pump, Extrusion Die, Three-roll Calender, Drawing Machine, Automatic Cutting System, Electrical Control System
Warranty Period:
One Year
Core Selling Point:
Multi-layer Composite Technology, High Precision Layer Thickness Control, Stable Extrusion Performance
Core Component Shelf Life:
One Year
Suitable Industry:
Agriculture, Building Decoration Industry, Electronic Product Packaging Industry, Etc
Production Capacity:
1000kg/h
Linear Velocity:
60m/min
Color:
Customed
Highlight:

Multi Layer Coextrusion Sheet Production Line

,

Multi Layer Plastic Sheet Extrusion Line

Product Description

MingDi Multi Layer Coextrusion Sheet Production Line Plastic Sheet Extrusion Line 0



Core components



MingDi Multi Layer Coextrusion Sheet Production Line Plastic Sheet Extrusion Line 1



































Feeding form



Screw-type



Feeding capacity

 1000kg/h



Control mode



Variable frequency motor speed control



Converter



SIEMENS Siemens 3KW, using Ethernet control technology





MingDi Multi Layer Coextrusion Sheet Production Line Plastic Sheet Extrusion Line 2



Band



Tuya





Structure form



Full-network double-column screen changer with hydraulic station



Heating zone



Two zones



Heating power



Approx.10kw



MingDi Multi Layer Coextrusion Sheet Production Line Plastic Sheet Extrusion Line 3



Brand



JCTIMES



Rated speed metering

8-60r (revolutions)转/min

8-60r rpm



Model number

 E90,(371CC)



Gearbox and motor power



SIEMENS Siemens reducer, 7KW servo motor





Variable conversion control



Siemens, using Ethernet control technology



MingDi Multi Layer Coextrusion Sheet Production Line Plastic Sheet Extrusion Line 4





Brand

JCTimes



Structure form



Hanger runner



Width of final product

 860mm



Thickness of final product

 0.2-1.0mm



Effective width of mold



Single-sided outer plug





Heating zone

 8zones



Heating power

 约30KW



Die head material

 5CrNiMo



Mold cavity processing



Surface chrome-plated and polished, polished chrome layer thickness greater than 0.06mm, surface finish Ra ≥ 12



MingDi Multi Layer Coextrusion Sheet Production Line Plastic Sheet Extrusion Line 5





Roller size



lower roller diameter 400mm, middle and upper roller diameter 600mm



Roller width

 1200mm



Roller materials



alloy steel



Roller surface roughness



mirror finish



Hardness

 ≥HRC60-62



Chrome layer thickness

 0.08mm-0.12mm



Drive motor



SIEMENS Siemens servo motor, 3 sets*7KW



Linear velocity

 6-60m



Reduction gear



SIEMENS Siemens Gearbox, 3 sets
Form



L-type



Forward and backward movement power

 0.75KW



Front and rear lifting power

 0.9KW



roller gap adjustment



Adopting hydraulic cylinder to adjust the distance, worm gear elevator micro-adjustment limit, with mechanical insurance, with micro-adjustment and percentage meter device, with hydraulic station, the highest pressure 15Mpa, with self-locking pressure preservation function
three-roller bearing

NSK

Nippon Seiko Kabushiki Kaisha)
water intake structure



Left inlet and right outlet water mode



MingDi Multi Layer Coextrusion Sheet Production Line Plastic Sheet Extrusion Line 6





Edge triming assembly



1 group, 3 knives, 1 group of left, middle and right, adjustable distance



Cutter form



rotary cutter



Ferrules winding



a set



Ferrules winding drive



0.4KW servo-motor control



MingDi Multi Layer Coextrusion Sheet Production Line Plastic Sheet Extrusion Line 7



Control system

 PLC
CPU SIEMENS S7-1500
HMI SIEMENS 12 inches



Inverters

 SIEMENS



miniature Circuit Breakers

 SIEMENS



Small relay



Schneider



Solid state relay



Swiss Galle



MingDi Multi Layer Coextrusion Sheet Production Line Plastic Sheet Extrusion Line 8





Size

 Ф200mm*1200mm



Haul-off roller



Upper rubber rollers and lower steel rods, rubber rollers cover layer thickness 20mm, nitrile rubber, surface Shore hardness 65-70°



Drive motors



SIEMENS servo motor, 5KW



Roll cylinder opening and closing



Cylinder adjustment



Wait controllers



Using Ethernet technology control



MingDi Multi Layer Coextrusion Sheet Production Line Plastic Sheet Extrusion Line 9





Form structure



Flip-type double-station winder



Air-expanded shaft



3 inch, 6 inch general, both ends of the installation of mechanical clutch, convenient disassembly of gas expansion shaft



Maximum winding diameter

 1200mm



Drive the motor



A Siemens servo-motor



Unwinding method



Manual



Winding method



Automatic





Production characteristics

Multi-layer composite technology: to achieve the effective composite of multi-layer fabrics,

to produce sheets with excellent properties, such as high barrier, heat preservation, UV resistance, etc.



Precise control system: Equipped with Siemens PLC automatic control system to ensure accurate control and efficient operation of the production process.



High productivity: Single screw extruder design, high output, fast production speed.



Quality after-sales service: Provide comprehensive installation, commissioning,

training and technical support to ensure customers worry-free use.

MingDi Multi Layer Coextrusion Sheet Production Line Plastic Sheet Extrusion Line 10

PET/PLA/PP/PS Sheet

Widely used in :degradegable lunch boxes,ordinary lunch boxes,electronic product packaging,food packaging,printing sheets,seeding tray sheets,etc.
